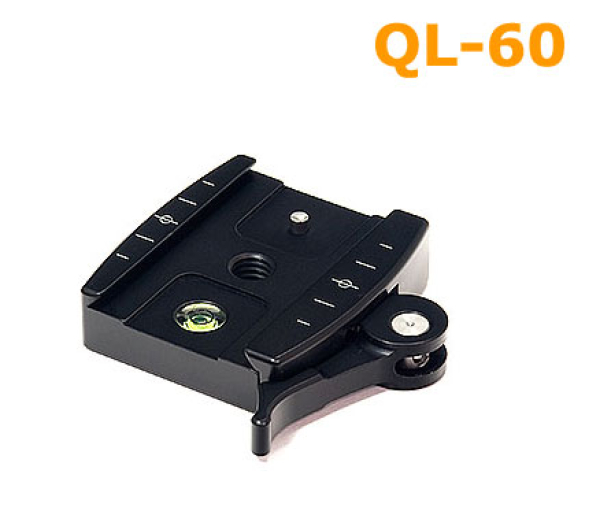

Markins QL-60 lever release quick shoe
The QL-60 Lever Release Shoe is the Markins factory mounted clamp, recommended if using plates from one brand.
-

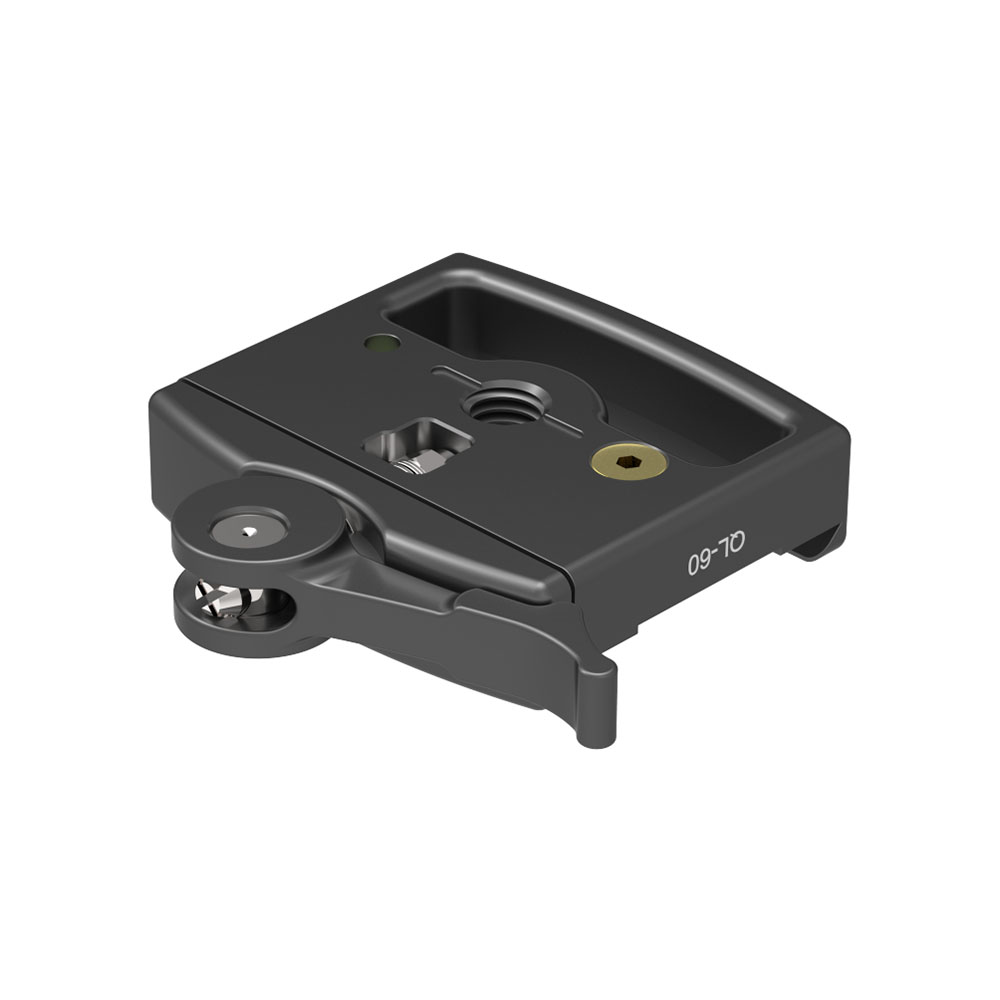

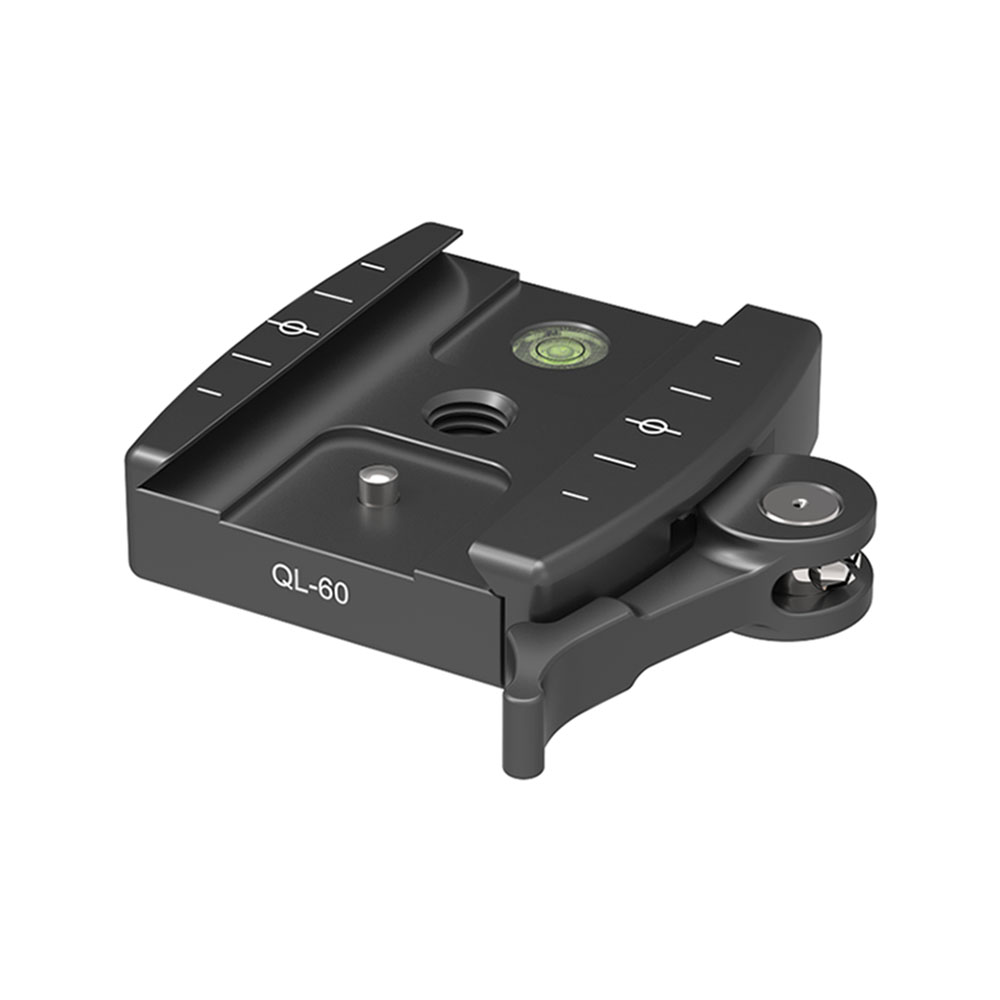

The QL-60 Lever Release Shoe with Lever Release and 3/8" mounting hole
-
Laser engraved position marks
-
Double stud with 1/4" and 3/8" thread you will find here
Release Style |
Lever Release Style |
Jaw Length |
60 mm |
Width (Closed) |
71 mm |
Width (Opened) |
75 mm |
Height |
15 mm |
Weight |
98 g |
Features:
- Light weight with durability, made of the highest quality duraluminum for aircraft machinery.
- Surface is hard-anodized to further increase resistance against scratches.
- Corners and edges are rounded by super-finishing barreling method.
- A guide way was added for sliding-locking mechanism.
- Stopping bolt pin added in the quick release shoe platform to further prevent plates from accidental sliding-off.
- Dove-tail type quick shoe can be interchangeably used with any industry standard Arca-Swiss type camera plates
- With 3/8" thread hole
- Double stud with 1/4" and 3/8" thread you will find here
- With built-in integrated bubble level
This high quality lever release combines the best of both worlds, efficiency of lever release and compatibility of screw release. It is lightening quick and easy to fully open and close the quickshoe, while it has the flexibility to be adjusted for plates that are slightly larger than Markins standard.
Easy Opening and Closing: The quickshoe opens/closes fully in one quick lever action even with hand with glove on.
Adjustable Clamping Distance: The clamping distance is adjustable by turning the adjustment screw for larger plates than Markins standard.
Though this lever release quickshoe is adaptable to accommodate different brands of plates, it won't be practical to do so in the field with mixed brands of plates. We strongly recommend to use a single brand of plates with this lever release quickshoe. With mixed brands of plates, the traditional screw style quickshoe will be more flexible.
Convertible Lever Arm Position: The lever arm is convertible either left or right hand position for one's own convenience.
Compact Design: The lever arm stays compact either opened or closed position.
Position Marks: Laser engraved position marks.
Overview:
Unit |
QR-48Ns |
QR-48N/48i |
QR-60N/60i |
QL-48/48i |
QL-60/60i |
Release Style |
Screw-Knob |
Screw-Knob |
Screw-Knob |
Lever |
Lever |
Jaw Length |
48mm |
48mm |
60mm |
48mm |
60mm |
Width (Closed) |
76mm |
87mm |
87mm |
71mm |
71mm |
Width (Opened) |
82mm |
92mm |
92mm |
75mm |
75mm |
Height |
15mm |
15mm |
15mm |
15mm |
15mm |
Weight |
78g |
81g |
96g |
81g |
98g |
|
