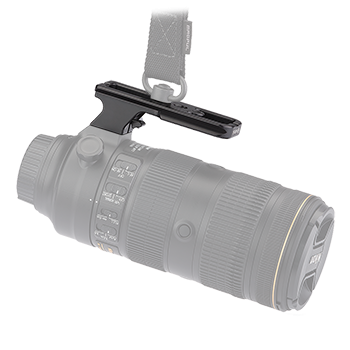

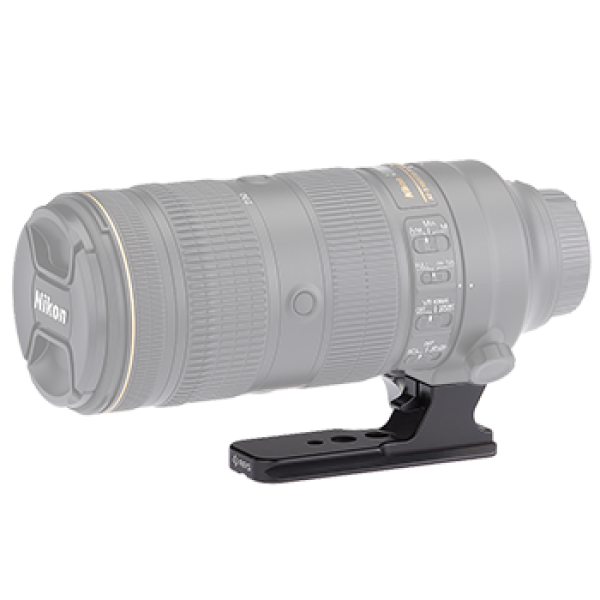

Really Right Stuff LCF-11 replacement lens foot for Nikon 70-200mm f/2.8E FL ED VR (2016) & Nikon 500 mm f/5.6E PF ED VR
Some collared, telephoto lenses have a foot than can be removed. If your lens has this option, choose one of our foot replacements instead of a lens plate. A replacement foot with built-in-dovetail mounting will be lighter, lower in profile, and provide the best possible stability for your lens. Really Right Stuff foot replacements are precision machined from solid blocks of 6061-T6 aluminum and are fully compatible with any Arca-Swiss quick-release system.
1. To remove the Nikon foot, use the M2.5 hex key tool that comes with the LCF-11 to completely remove the four Nikon mounting screws.
2. To install the LCF-11, use the four original Nikon M3 screws and secure the Really Right Stuff foot to the lens collar.
3. If your mounting screws loosen over time, consider using a drop of medium threadlocker, such as Vibratite or Loctite 242 for better security.
CNC machined 6061-T6 Aluminum
Anodized; Type II Black
Bottom of foot incorporates two accessory sockets: one ¼"-20 and one 3/8"-16.
Weight: 90g
Height: 31mm
Length: 107 mm
Width: 1.5" / 38mm
In the box:
LCF-11 foot replacement
M2.5 hex key for M3 safety stop screws
(2) M3 safety-stop screw
Replacement foot user’s guide
For more information, please visit the home page for this product.
