Application:

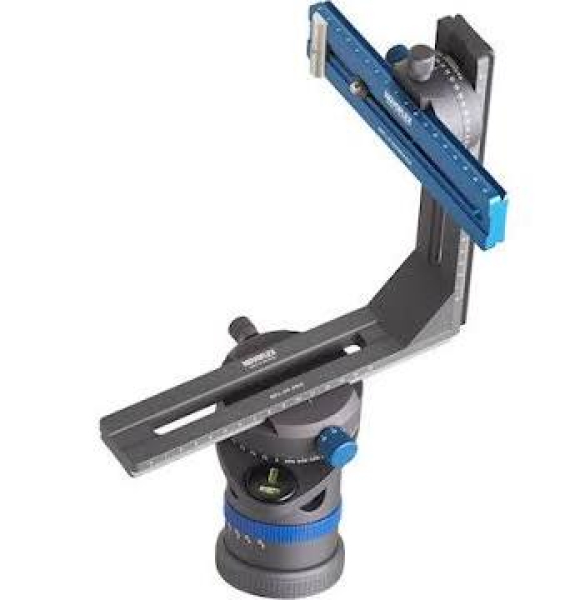

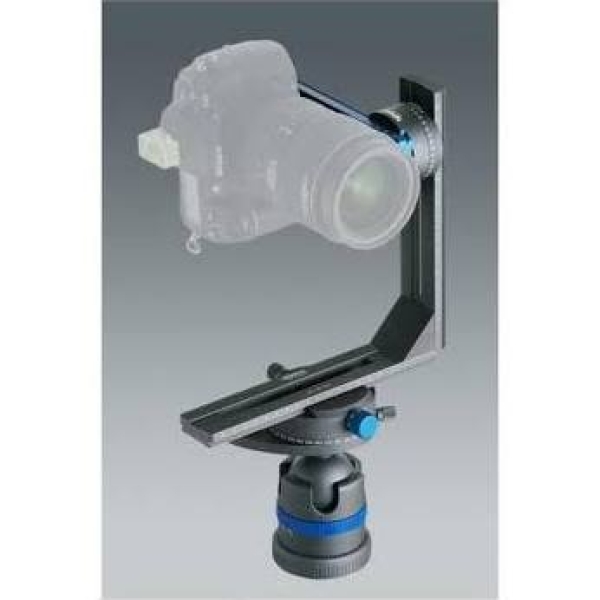

The VR-System PRO II enables the parallax-free, horizontal and vertical pivoting around the nodal point of the lens.
It is designed for multi-row panoramas in perspective-corrected flat or spherical projection.

Due to the lower panorama base that can be moved in eight adjustable increments, classic single-row cylinder panoramas can easily be done as well.

Comfort, stability and precision are the main features of this professional panoramic head.

New in release II:

The upper panorama base is now equipped with click-stops for two selectable increments (45° and 60°). The L-bracket was enlarged and stabilised. The upper clamping plate was also lenghtened and includes a movable anti-twist camera stop.

For whom?

The Panorama VR-System PRO II is the perfect solution for ­professional photographers dealing with all facets of ­panoramic photography. The VR-System PRO II masters all varieties from spherical panorama, perspective-corrected flat panoramas or classic cylindrical panoramas, even when heavy professional DSLR equipment is used.

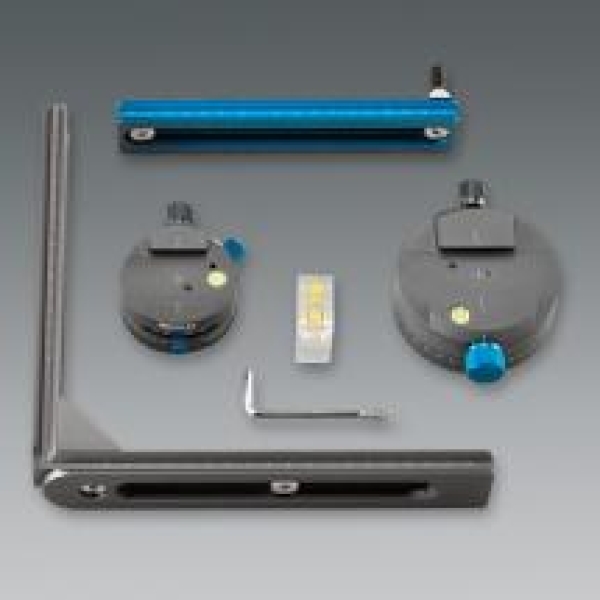

Scope of delivery:

• Panorama base Panorama=Q PRO with click-stops 0-36
• L-bracket QPL-VR PRO (23 × 23 cm),
• Panorama base Panorama=VR with click-stops 0/6/8
• clamping plate QPL-Panorama
• spirit-level for flash shoe
• printed manual

Technical specifications:

• Suitable lenses: Focal lengths from 10 to 300 mm
• Adjustment in optical axle: 150 mm
• Image reproduction: Single and multi row
• Panorama type: Flat, cylindrical and spherical projection
• Recommended software: PTGui, Photoshop

Weight: 1690g (3.7 lbs)
Camera/tripod fitting: 1/4” resp. 3/8” / 1/4”

Additional accessories

Clamping plate 235mm

Longer camera plate, only required for long lenses with wide front seated nodal point (entrance pupil), eg Nikon 2,8 / 24-70mm.

More information: QPL-PANORAMA 235

Spacer plate PLATTE-U

In the event a wide angle- or fisheye zoom lens hood contacts the upper clamping plate, then don’t tighten the camera screw to much. This would exert great pressure on the camera body and may damage your camera or lens. In this case, a spacer plate, such as the PLATTE-U is required. Alternatively use a battery grip. The problem only appears with compact DSLR’s such as the EOS Rebel T2i or T3i and others. Professional models are not affected

More information:   PLATTE-U
